We have developed race car parts and tools for some of the more popular sport racers and formula cars. Here are some of the products that we have made.

For price or more info about these racing tools and parts please email or call us at:(707) 938 8727

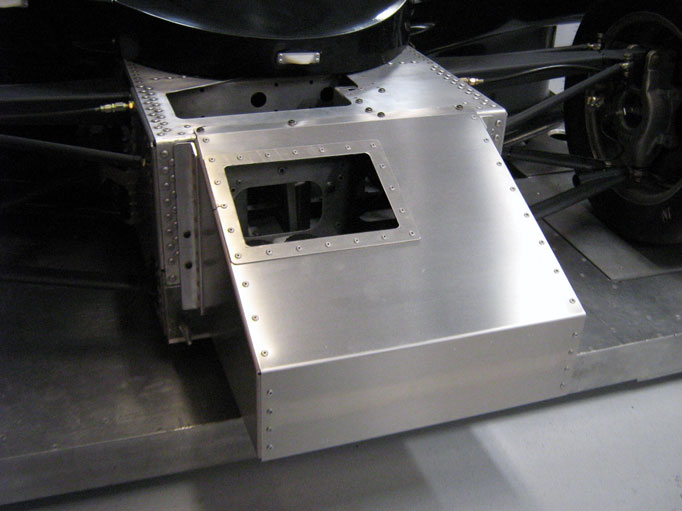

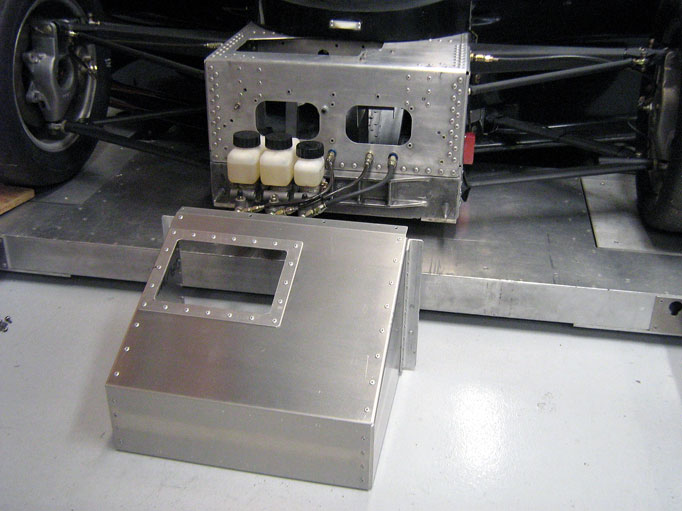

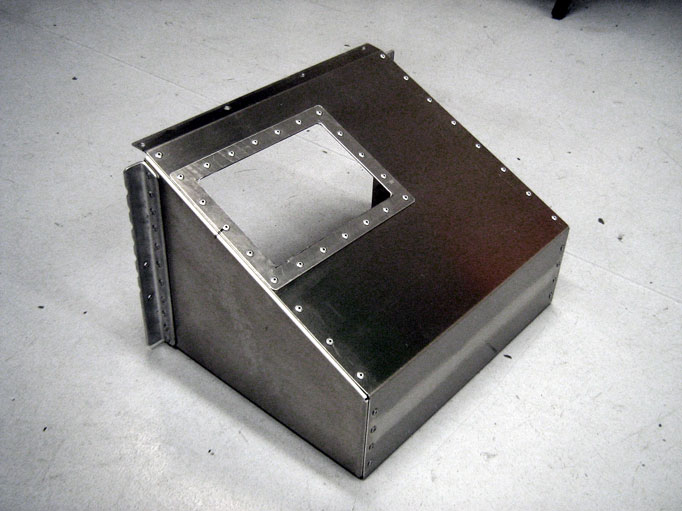

Front crush box for Swift DB-2/5

Aluminum crush box for Swift Sports 2000. Will fit both DB-2 and DB-5 models. Will also fit inside either nose of DB-2 and DB-5.

This crush box is for added safety to the driver and reduce car front end damage.

SCCA requires a crush box to be fitted to Swift sports 2000 DB-2 and DB-5. (GCR Sports 2000 Preparation Rules section B.3.b) This crush box meets and exceeds the SCCA requirements.

 Made with 6061 T6 .063 aluminum sheet metal with a .075 re-enforcement ring on the access hole for the master cylinders.

For more info or price email or

call us at  (707) 938 8727

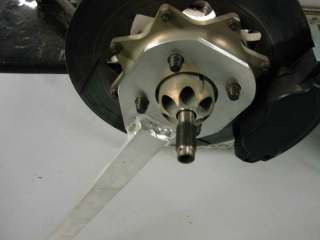

Wheel hub wrench

For holding the wheel hub to torque the axle nut or remove it.

Fits most small sport racer and formula car wheel hubs: Swift, Carbir, Van Diemen and more. Four 9/16" holes on a 3 3/4" circle. Center bore is 2 1/2"

Made of  aluminum for lightweight with a 28" handle.

For more info or price email or

call us at  (707) 938 8727

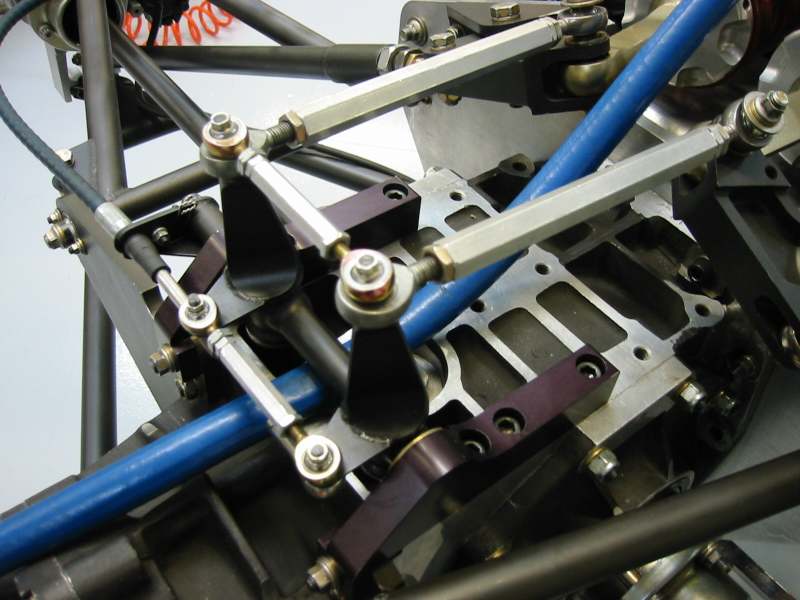

Rear anti-swaybar kit for Staffs

Cockpit adjustable rear anti-swaybar kit for Staffs gearbox. Made to fit Carbir Sports 2000 but will work on other Staffs gearbox applications. Twin blade design with different size shafts available for a wide variety of adjustments.

Can be sold as a complete bolt on kit for Carbir Sports 2000 with cable and all hardware or just swaybar assembly with mounts.

For more info or price email or

call us at  (707) 938 8727


      Bottom bracket for Carbir

Bottom bracket and skid mount for connecting Carbir oil tank to 2L engine oil pan. This two piece bracket ties in the oil tank to the bottom of the engine to reduce flexing between them and also to mount a skid pad for protecting the flywheel.

For more info or price email or

call us at  (707) 938 8727


     Carbir shear plate/rocker mount

A one piece machined aluminum plate (right) to replace the stock two piece plates (left). This one piece plate makes the car a lot more ridged and helps to hold the oil tank walls together with less flexing. Works with all stock parts. Plate can be bare aluminum for any more modifications you may want to add or anodized to your color preference.

For more info or price email or

call us at  (707) 938 8727


        Rear cover mount for MK9

This is a modification to the Hewland MK9 transmission rear cover with a machined square aluminum  tube welded on to allow  universal mounting of a rear wing or tail supports. It is designed so that the stock rear cover studs and nuts can still be used and easily accesed. Minimal weight but with strong and ridged design. The tube is 3" square and 5.5" high and .195" wall. We can leave the mount blank for your own custom setup or machined to fit our tail support assembly.

For more info or price email or

call us at  (707) 938 8727


   Tail support for Swift DB-2/5

This is a tail support assembly that fits on our MK9 rear cover mount and Swift DB-2/5 Sports 2000. It allows for a stronger support at the rear of the tail where the spoiler is making most of the downforce. An aluminum square tube is fitted to the tail that rests on the top of the mount when in place. There is a flat surface at the top for a fastening device such as a camloc.

For more info or price email or

call us at  (707) 938 8727




         Shoulder belt adaptor to for Hans   Device with FSCCA car

Most cars are not designed with the proper shoulder belt spacing for use with the Hans device and the belts are too far apart. Often drivers do not have the belts at the proper height either. We have made modifications to many cars to place the shoulder belts closer for use with the Hans device and the right height to match the driver.

This is a shoulder belt mount adaptor to fit Hans device with a FSCCA race car. This adaptor is made to fit the stock shoulder belt mounts and no welding or modification is needed to the car.

We can make this to fit the different height mount of your car depending on your shoulder belt fit.

For more info or price email or

call us at  (707) 938 8727
